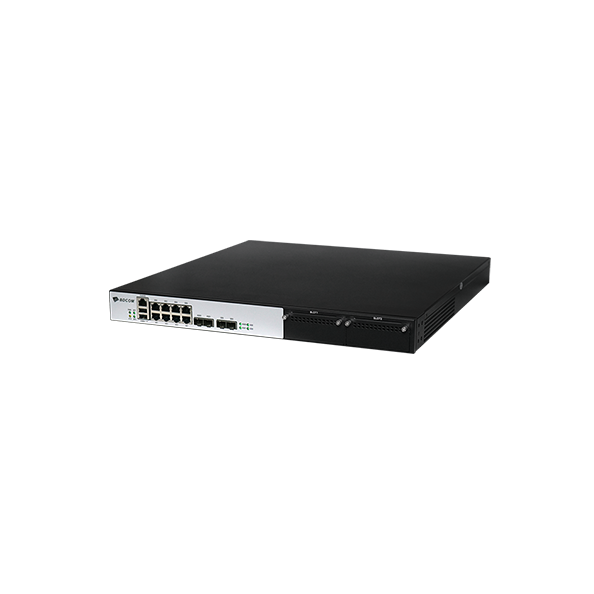

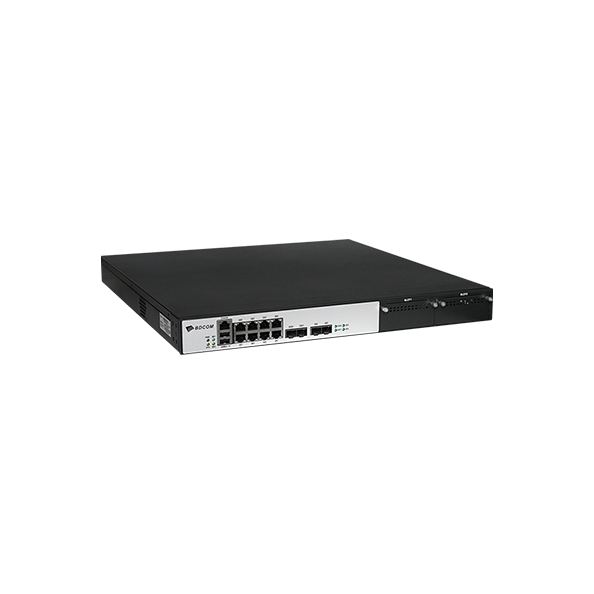

NGFW (Next Generation Firewall) F5100-40MH

Features

Network function

• Supports three working modes: transparent, routing, and hybrid, as well as link aggregation
• Supports Source NAT, Destination NAT, Port NAT, and Static NAT
• Supports VLAN and VRF
• Supports WLAN and 3G wireless access
• Supports DHCP server and DHCP Relay, DNS server, and static DNS
• Supports static routing, PBR, ISP routing, and source interface routing
• Supports application-based routing
• Supports dynamic routing protocols such as OSPF, RIP, and OSPFv3
• Supports route detection function
• Supports IPv6 static routing, route advertisements, and tunnel translation

Firewall

• Supports octuple policies based on user, application, source and destination interfaces, source and destination IP, service, and time
• Supports object-oriented addressing, services, scheduling, applications, and user resources
• Supports policy-based persistent connections
• Supports policy hit counts statistics and reset
• Supports policy priority adjustment
• Supports IPv6 security policies
• Supports session statistics, monitoring, temporary blocking, and global session restrictions

Security protection

• Supports IP-MAC binding, ARP spoofing protection, and ARP Flood attack prevention
• Supports IPv4 abnormal packet attack protection, including Ping of Death, Land-Base, Tear Drop, TCP Flag Winnuke, Smurf, Jolt2, and others
• Supports protection against port scanning and IP scanning
• Supports SYN Flood, UDP Flood, ICMP Flood, and DNS Flood attack protection based on interface and IP
• Supports a blacklist for manual and automatic attack protection
• Supports IPv6 abnormal packet attack protection against threats such as Winnuke, Land-Base, TCP Flag, Fraggle, and IP Spoof

VPN

• Supports standard IPSec VPN protocols and deployment methods
• Supports policy-based and route-based IPsec VPN
• Supports CA centers and X.509 format certificates
• Supports VPN Track
• Supports SSL VPN tunnel mode
• Supports GRE VPN
• Supports security protection and bandwidth management under VPN tunnels

Virus Defense

• Supports virus filtering based on HTTP, FTP, SMTP, POP3, IMAP protocols
• Supports blocking specific file types from passing through
• Supports virus scanning for up to 20 layers of compressed files
• Supports manual and automatic updates of the virus database
• Supports malicious URL filtering

Intrusion Detection

• Supports automatic protocol recognition
• Supports over 3000 predefined attack signatures
• Supports automatic and manual updates of the signature database
• Provides security protection against worms, Trojan backdoors, phishing, and other threats

Internet Behavior Management

• Supports control over logging in and messaging in IM software
• Supports control over software such as P2P and streaming media
• Supports control over online gaming
• Supports control over stock market information and trading activities
• Supports control over sending and receiving emails, including attachment size filtering
• Supports URL category filtering

User Management

• Supports local user authentication for the firewall
• Supports standard third-party user authentication such as Radius, LDAP, etc.
• Supports WeChat user authentication and SMS gateway
• Supports Web user authentication
• Supports online user monitoring and timeout management
• Supports centralized user policy management

Traffic Management

• Supports multi-level nested bandwidth management based on channels, interfaces, users, and applications
• Supports bandwidth priority management
• Supports maximum and minimum bandwidth limitation, and elastic bandwidth
• Supports rate limiting per IP
• Supports policy troubleshooting

Visualization

• Supports real-time statistics of CPU, memory, and interface traffic
• Supports traffic statistics of users and applications via pie charts, bar graphs, and trend graphs
• Supports real-time display of user and application rankings
• Supports real-time alerts for system events and security risks

System Management

• Supports system administrators and read-only administrators
• Supports administrator privacy check and timeout management
• Supports manual system time setting and NTP synchronization
• Supports dual system configuration file backup
• Supports manual system file upgrades
• Supports SNMPv1/v2/v3
• Supports hot standby in active-standby and active-active modes
• Supports interface status synchronization and status detection
• Supports system diagnostics via PING, TRACERT, TCPSYN methods
• Supports periodic collection of system information
