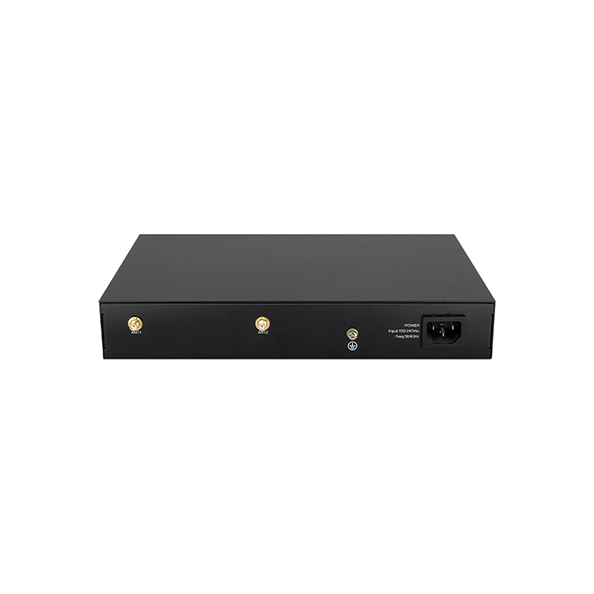

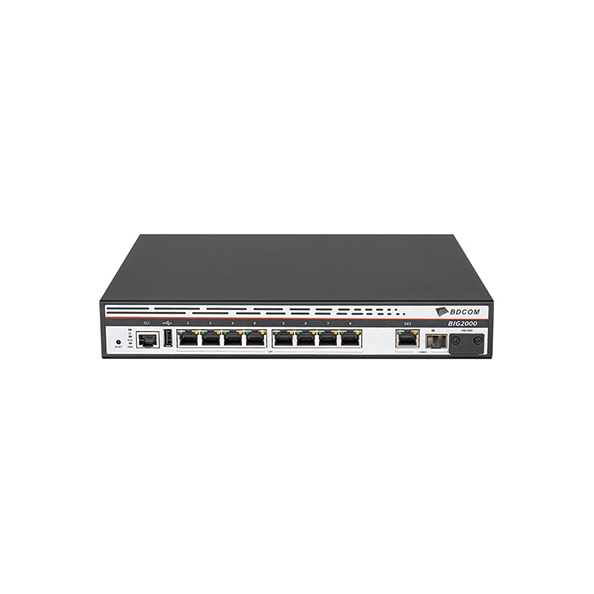

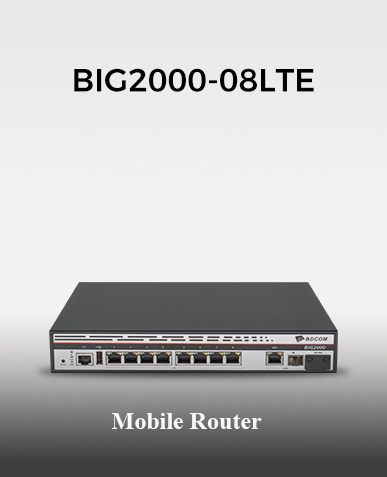

Multi-service Integrated 4G-LTE Gateway BIG2000-08LTE

0 ₫

Dòng sản phẩm BDCOM BIG2000 là cổng hội tụ đa dịch vụ do BDCOM phát triển, hướng đến nhiều tình huống ICT khác nhau như doanh nghiệp, công viên, khách sạn, trường học, bệnh viện và chuỗi thương mại.

SKU: BIG2000-08LTE Categories: ,
Chia sẻ tới bạn bè và gia đình

Cổng 4G-LTE tích hợp đa dịch vụ – Multi-service Integrated 4G-LTE Gateway

Dòng sản phẩm BDCOM BIG2000 là cổng hội tụ đa dịch vụ do BDCOM phát triển, hướng đến nhiều ứng dụng CNTT khác nhau như doanh nghiệp, công viên, khách sạn, trường học, bệnh viện và chuỗi thương mại.

Tính năng nổi bật
– Hiệu suất mạnh mẽ
– Độ tin cậy tuyệt vời
– Giao thức định tuyến toàn diện
– Bộ sưu tập tính năng phong phú
– Quản lý và bảo trì đám mây chu đáo

Overview

Typical Application

Technical Parameter

BIG2000-08LTE
Console(RJ45)1
USB1
Ports
WAN1 LTE(dual-SIM single-standby)
1-Port Gigabit RJ45/SFP combo
LAN8-Port Gigabit RJ45
Reset1
Throughput1Mpps
Flash4GB
DRAM1GB
NAT concurrent session<350K
Consumption
No-load≤5W
Full-load≤10W
Total output BTU(not: 1000BTU/hr=293W)34.13
Chassis
Dimensions mm (WxDxH)280x180x44
Weight (kg,empty)1.5
Package
Dimensions mm (WxDxH)500×320×80
Weight (kg)1.7
Operating
Temperature-20℃ ~ 60℃
Humidity5%~95% (non-condensing)
Storage
Temperature-40℃~85℃
Humidity5%~95% (non-condensing)
Fan/
Noise@25℃(dBA)0
Power supply100-240V AC
AccessoryConsole cable, power adaptor,rackmount-kit, rubber pads

Features

ARP

  • ARP dynamic learning, ARP static binding, free ARP anti-spoofing

Ethernet protocol

  • 802.3 protocol family, 802.1Q VLAN, Rate-limit, broadcast storm suppression

Link layer protocol

  • Point to Point Protocol (PPP)

LTE wireless

  • TDD and FDD-LTE full Netcom modules, backward compatible
  • APN dial-up
  • dual-SIM single-standby and wireless backup networking (applicable to some models)

WAN access

  • Static IP address, DHCP dynamic IP and PPPoE dial-up access
  • Multi-line networking
  • Load balancing of multiple policies (equivalent, weighted)

QoS

  • Traffic classification based on IP 5-tuple
  • Committed Access Rate (CAR) and Generic Traffic Shaping (GTS)
  • PQ, CQ, CBWFQ

Routing protocol

  • Static routing, PBR
  • RIP v1/v2, OSPF v2, BGP
  • Floating routing and routing automatic backup
  • Keepalive, BFD remote link detection

NAT

  • NAT based on IP, port and address pool
  • SNAT, DNAT
  • NAT port mapping
  • NAT concurrent connection limit
  • NAT Application Layer Gateway (ALG)

DHCP

  • DHCP server, DHCP Relay
  • DHCP Option43, 60, 82

IP-based service

  • IP, ICMP, TCP, UDP
  • DNS and DDNS
  • NTP
  • FTP and TFTP
  • PPPoE server

Multicast protocol

  • IGMP, PIM-SM, PIM-DM

Network security

  • AAA, PPP, CHAP and MS-CHAP authentication
  • IP and MAC-based ACL firewall policy
  • Rich VPN protocols such as IKE, IPSec, L2TP/PPTP, GRE
  • Nested deployment of multiple VPN protocols
  • Anti-Flood capability for ARP, IP, ICMP, TCP
  • Attack protection such as Ping of Death, Tear-drop, WinNuke, Smurf, etc.

IPv6 protocol

  • IP v4/v6 dual stack
  • Ipv6 static routing
  • IPSec v6
  • Ipv6 Dynamic routing such as RIPng, OSPFv3, BGP4+

Management and maintenance

  • Console, Telnet, SSH, SNMP
  • ping, traceroute
  • Syslog
  • Pallas cloud management

Ordering Information

BIG2000 Series
BIG2000-08LTEBIG2000-08LTE Multi-service Integrated 4G-LTE Gateway ( 1-Port RJ45 console, 1-Port USB2.0, 1-Port Gigabit RJ45/SFP combo WAN, 8-Port Gigabit RJ45 LAN, built-in dual-sim single-stand by full-Netcom 4G LTE, 220V AC power supply)
