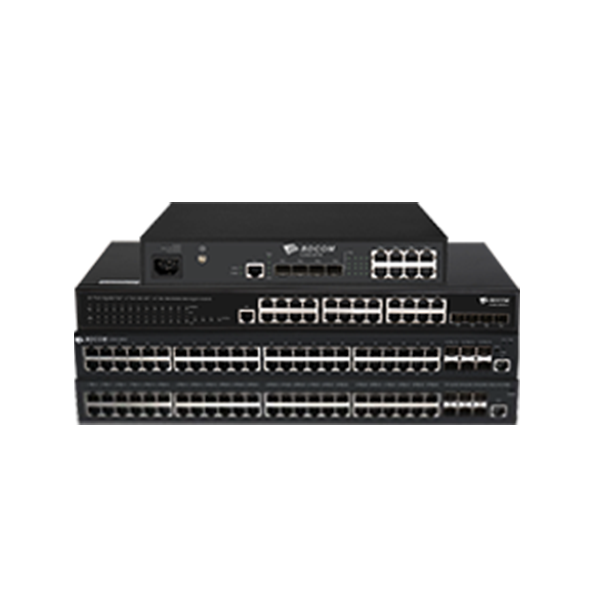

Thiết bị chuyển mạch Gigabit PoE+ 10G L3-lite Managed S2900-P Series

0 ₫

Dòng sản phẩm BDCOM S2900 PoE với 24 & 48 cổng PoE+, tích hợp đường truyền 10G, phần cứng cao cấp và phần mềm L3 đầy đủ tính năng.

SKU: S2900-P Series Category:
Chia sẻ tới bạn bè và gia đình

Thiết bị chuyển mạch Gigabit/PoE+ 10G L3-lite Managed
Dòng sản phẩm BDCOM S2900 PoE với 24 & 48 cổng PoE+, tích hợp đường truyền 10G, phần cứng cao cấp và phần mềm L3 đầy đủ tính năng.

Tính năng nổi bật
– Công nghệ chuyển mạch cụm ảo tiên tiến
– Mạng vòng Ethernet công nghiệp không trễ và không mất gói
– Bộ chuyển mạch Ethernet cấp viễn thông

S2900-P Series

S2900-8P4X, S2900-24P4Xv1, S2900-48P6X, S2900-48P6X-370, S2900-48P6X-760, S2900-24P4X

Overview

Typical Application

Technical Parameter

S2900-8P4XS2900-24P4Xv1S2900-48P6XS2900-48P6X-370S2900-48P6X-760S2900-24P4X
244848
Gigabit PoE+8448 GE TX66
10G/GE SFP+416 10GE/GE SFP+1124 GE POE
Console(RJ45)112812162164 10GE/GE SFP+
Backplane(Gbps)128962161621621
Forwarding rate (Mpps with 64 bytes)72162128
Chassis441.1×207.5×44440x280x44440x280x4496
Dimensions (WxDxH)(mm)280x180x443440×300×445.25.2
Weight (KG)(empty)1.65.2440x210x44
Package555×295×88576x448x94576x448x943
Dimensions (WxDxH)(mm)350x268x944.1576x448x946.16.1
Weight(KG)2.66.1555x295x88
Power consumption< 25W< 25W< 25W4.1
no-load< 25W<35W< 25W< 48W< 48W
full-load<35W(without PoE)<48W(without POE)(without PoE)(without PoE)< 25W
(without PoE)450W AC and 800W DC<408W
Power supply AC: 100V-240V DC: 36-72V160W AC410W AC370W AC or 740W DC450W AC810W AC410W
PoE budget125W370W1535.84@AC,370W760W370W
Total output BTU (1000BTU/H=293W)546.081392.492730.38@DC1535.842764.511392.49
Fan number022222
Noise@25°C（dBA)037.545454537.5
MTBF(H)>200,000>200,000> 200,000>200,000>200,000> 200,000
Forwarding modeStore-forwardStore-forwardStore-forwardStore-forwardStore-forwardStore-forward
Flash (MB)161616161616
DRAM (MB)256256512512512256
MAC16K16K16K32K32K16K
Buffer size(MB)1.51.51.5221.5
Interface vlan646464646464
Routing table512512512512512512
Jumbo frame9K9K9K9K9K9K

Features

VLAN

  • 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN

Spanning Tree

  • 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
  • BPDU guard, root guard and loopback guard

Multicast

  • IGMP v1/v2/v3, IGMP Snooping,
  • IGMP Fast Leave, MVR, IGMP filter

IP

  • Static route, RIP, OSPF
  • IPv4/v6 dual stack

IPv6

  • ICMPv6, DHCPv6, ACLv6 and Ipv6 Telnet
  • IPv6 neighbor discovery, Path MTU discovery
  • MLD V1/2, MLD snooping
  • IPv6 Static Routing, RIPng, OSPFv3

Certification

  • CE, FCC, ROHS

QoS

  • CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

  • Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky DAI & IP source guard, PPPoE+,
  • IEEE 802.1x, AAA, Radius and BDTacacs+
  • L2/L3/L4 ACL flow identification and filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood, etc.
  • Broadcast/multicast/unknown unicast storm-control
  • MD5, SHA-256, RSA-1024, AES256, etc.

DHCP

  • DHCP server/relay/client
  • DHCP snooping/option82

Reliability

  • Static/LACP link aggregation, Interface backup
  • EAPS and ERPS
  • ISSU uninterrupted system u pgrade
  • BVSS, ups to 16-units per stack
  • VRRP
  • UDLD

Management

  • Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON
  • TFTP, FTP, SFTP
  • NTP
  • ZTP
  • SPAN, RSPAN
  • Dying gasp*

Environment

  • Operating temperature/humidity: 0 -50℃ ,10%-90% non-condensing
  • Storage temperature/humidity: -20 -70℃ , 5%-95% non-condensing

Accessories

  • Power cord, rackmount kits, console cable



Ordering Information

S2900 L3-lite series switch
S2900-8P4X8-Port Gigabit PoE + 4-Port 10GE SFP+ L3-lite Managed Switch (AC-220V power supply;
125W PoE budget; fanless, 1U, standard 19-inch rack-mounted installation)
S2900-24P4Xv124-Port Gigabit PoE+ 4-Port 10G SFP+ L3-lite Stackable Managed Switch (single AC-220V
power supply, 370W PoE budget; with cooling fan; 1U; standard 19-inch rack-mounted
installation)
S2900-48P6XEthernet Layer-3 lite POE switch with 48 GE ports and 6 10GE/GE ports (1 console port, 48 GE POE TX ports, 6 10GE/GE SFP+ ports; standard AC220V power supply, 370W AC POE power, 740W DC POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
S2900-48P6X-37048-Port Gigabit PoE+ 6-Port 10G SFP+ L3-lite Stackable Managed Switch (AC-220V power
supply, 370W AC PoE budget, with cooling fan; 1U; standard 19-inch rack-mounted
installation)
S2900-48P6X-76048-Port Gigabit PoE+ 6-Port 10G SFP+ L3-lite Stackable Managed Switch (AC-220V power
supply, 760W AC PoE budget, with cooling fan; 1U; standard 19-inch rack-mounted
installation)
S2900-24P4XEthernet Layer-3 lite POE switch with 24 GE ports and 4 10GE ports (1 console port, 24 GE POE TX ports, 4 10GE/GE SFP ports; standard AC220V power supply, 370W POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
10GE optical modules
SFP+TX10GE SFP+-to-RJ45 module
SFP+SX10GE SFP+ multi-mode (300m, 850nm, LC)
SFP+LX-1010GE SFP+ single-mode (10Km, 1310nm, LC, DDM)
SFP+LX-2010GE SFP+ single-mode (20Km, 1310nm, LC, DDM)
SFP+LX-4010GE SFP+ single-mode (40Km, 1310nm, LC, DDM)
SFP+LX-8010GE SFP+ single-mode (80Km, 1550nm, LC, DDM)
SFP+LX-SM-1270-1010GE SFP+ single-mode, single-fiber (10Km, TX1270/RX1330, LC, DDM)
SFP+LX-SM-1330-1010GE SFP+ single-mode, single-fiber (10Km,TX1330/RX1270, LC, DDM)
SFP+LX-SM-1270-2010GE SFP+ single-mode, single-fiber (20Km, TX1270/RX1330, LC, DDM)
SFP+LX-SM-1330-2010GE SFP+ single-mode, single-fiber (20Km,TX1330/RX1270, LC, DDM)
SFP+LX-SM-1270-4010GE SFP+ single-mode, single-fiber (40Km, TX1270/RX1330, LC, DDM)
SFP+LX-SM-1330-4010GE SFP+ single-mode, single-fiber (40Km,TX1330/RX1270, LC, DDM)
GE Optical Modules
GSFP-TX-B10GE SFP+-to-RJ45 module
GSFP-SX-DGE SFP multi-mode (500m, 850nm, LC, DDM)
GSFP-LX-10-DGE SFP single-mode (10Km, 1310nm, LC, DDM)
GSFP-LX-20-DGE SFP single-mode (40Km, 1310nm, LC, DDM)
GSFP-LX-40-DGE SFP single-mode (40Km, 1310nm, LC, DDM)
GSFP-ZX-80-DGE SFP single-mode (80Km, 1550nm, LC, DDM)
GSFP-ZX-120-DGE SFP single-mode (120Km, 1550nm, LC, DDM)
GSFP-LX-SM1310-10-BIDIGE SFP single-mode, single fiber (10Km, TX1310/RX1550, LC, DDM)
GSFP-LX-SM1550-10-BIDIGE SFP single-mode, single fiber (10Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1310-20-BIDIGE SFP single-mode, single fiber (20Km, TX1310/RX1550, LC, DDM)
GSFP-LX-SM1550-20-BIDIGE SFP single-mode, single fiber (20Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1310-40-BIDIGE SFP single-mode, single fiber (40Km, TX1310/RX1550, LC, DDM)
GSFP-LX-SM1550-40-BIDIGE SFP single-mode, single fiber (40Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1490-80-BIDIGE SFP single-mode, single fiber (80Km, TX1490/RX1550, LC, DDM)
GSFP-LX-SM1550-80-BIDIGE SFP single-mode, single fiber (80Km, TX1550/RX1490, LC, DDM)
GSFP-LX-SM1490-120GE SFP single-mode, single fiber (120Km, TX1490/RX1550, LC, DDM)
GSFP-LX-SM1550-120GE SFP single-mode, single fiber (120Km, TX1550/RX1490, LC, DDM)
