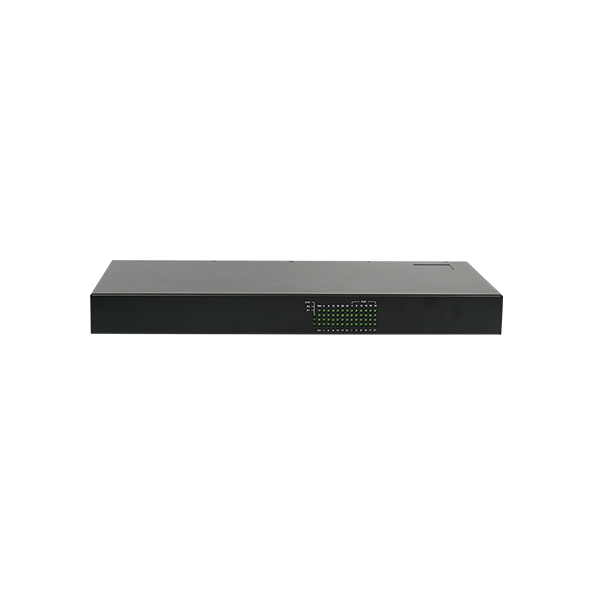

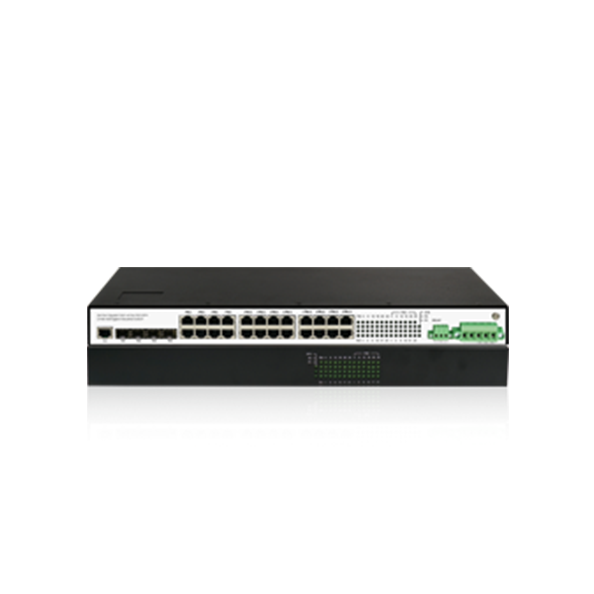

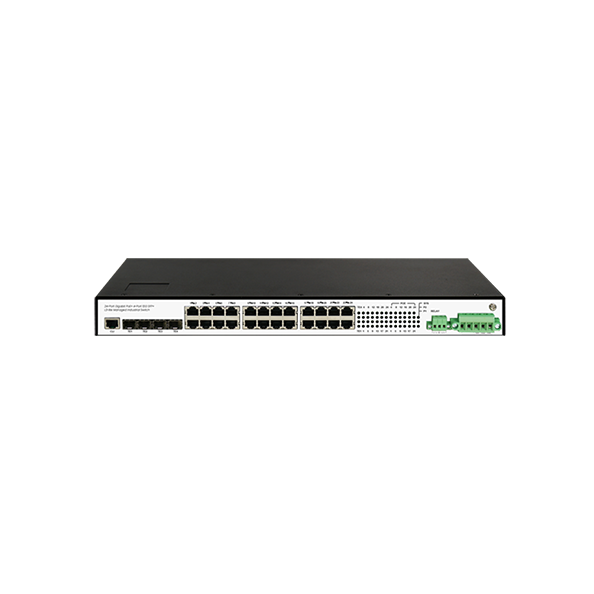

Thiết bị chuyển mạch công nghiệp PoE dạng rack L3-lite IES2000 Series

Features

Standards

• IEEE 802.1 Working Group
• IEEE 802.3 Working Group
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3z Gigabit 1000BASE-SX/LX
• IEEE 802.3ab Gigabit 1000BASE-T
• IEEE 802.3ae 10Gb/s Ethernet
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3x flow control and back pressure
• IEEE 802.3ad port trunk with LACP
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree Protocol
• IEEE 802.1s Multiple Spanning Tree Protocol
• IEEE 802.1p Class of Service
• IEEE 802.1Q VLAN tagging
• IEEE 802.1ad Q-in-Q
• IEEE 802.1X port authentication network control
• IEEE 802.1ab LLDP and LLDP-MED
• IEEE 802.3ah OAM
• IEEE 802.3az EEE( Energy Efficient Ethernet)
• RFC 768 UDP
• RFC 793 TFTP
• RFC 791 IP
• RFC 792 ICMP
• RFC 2068 HTTP
• RFC 1112 IGMP v1
• RFC 2236 IGMP v2
• RFC 3376 IGMP v3
• RFC 2710 MLD v1
• RFC 2328 OSPF v2
• RFC 1058 RIP v1
• RFC 2453 RIP v2
• ITU-T G.8032 ERPS

Management

• CLI: Console, Telnet, SSHv1/2
• Web-GUI: HTTP, HTTPS/SSL
• SNMP v1/v2c/v3, RMON, SNMP alarm/inform/traps
• MIB-I, MIB-II
• Upload and download of FTP/TFTP files
• Debugging
• Syslog for alarm/notification/command/debug
• NTP-4
• SPAN, RSPAN (1:1 and N:1 port mirror)
• LLDP, LLDP-MED
• ZTP (Zero Touch Provisioning)
• Optical DDM
• Ethernet cable diagnosis

MAC switching

• Static configuration and dynamic MAC learning(16K)
• MAC browsing and removal
• Configurable aging time of the MAC address
• Limited number of learnable MAC addresses
• MAC filtration
• Black-hole MAC list

VLAN

• 4K VLAN IDs, 4094 active VLAN, 64 SVI
• GVRP
• 1:1 and N:1 VLAN Mapping
• QinQ and selective QinQ
• Private VLAN
• Voice-VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN

STP

• 802.1d STP, 802.1w RSTP, 802.1s MSTP
• BPDU protection, root protection and ring protection
• L2PT for BPDU

Multicast

• IGMP v1/v2/v3(1024 groups)
• IGMP Snooping
• IGMP Fast Leave
• Multicast group policy and multicast number limit
• Multicast filtering
• MVR
• Support for transparent passing of multicast traffic without IGMP snooping in certain port and VLAN

IPv4

• Static routing, RIP, OSPF, VRRP

Reliability

• Static and LACP link aggregation, 64 groups, ups to 8 ports in one group
• Load-balance based src-MAC/src-IP/dst-MAC/dst-IP/src-port/dst-port and any combination
• EAPS, ERPS(recovery time≤50ms)
• ERPS revertive and non-revertive operation mode
• ISSU
• Loopback-detection

IPv6

• ICMPv6, DHCPv6, ACLv6, IPv6 Telnet, IPv6 QoS
• IPv6 Neighbor Discovery
• Path MTU Discovery
• MLD Snooping
• RIPng, OSPFv3

DHCP

• DHCP server, client, relay, snooping

QoS

• Traffic classification of port/L2~4 protocol headers/VLAN/CoS/ DSCP
• CAR traffic control
• 802.1P/DSCP priority mapping and remark
• Multiple queuing algorithms such as SP, WRR or SP+WRR
• Tail-Drop, WRED
• Traffic supervision and traffic shaping
• 8 queues per port
• Rate-limit based on MAC/IP/COS/DSCP/TOS/EXP/any

Security

• L2~L4 ingress/egress ACL (895 IPv4 FP, 384 IPv6 FP)
• Anti-DOS/IP spoofing/TCP/ping/SYN/ICMP flood attacks
• CPU protection
• Broadcast/multicast/unknown-unicast storm-control
• Port isolation
• Port Security, MAC address limitation, IP+MAC+port binding
• DHCP Snooping, DHCP Option 82
• DAI(Dynamic ARP Inspection)
• IPSG(IP Source Guard)
• PPPoE-IA(including hostname/port/vlan/switch-MAC/client-MAC/user-defined circuit-ID and client-MAC/switch-MAC/user-defined remote-ID)
• IEEE 802.1x authentication
• MAC-based authentication
• AAA
• Radius, TACACS+
• Multiple user privileges
