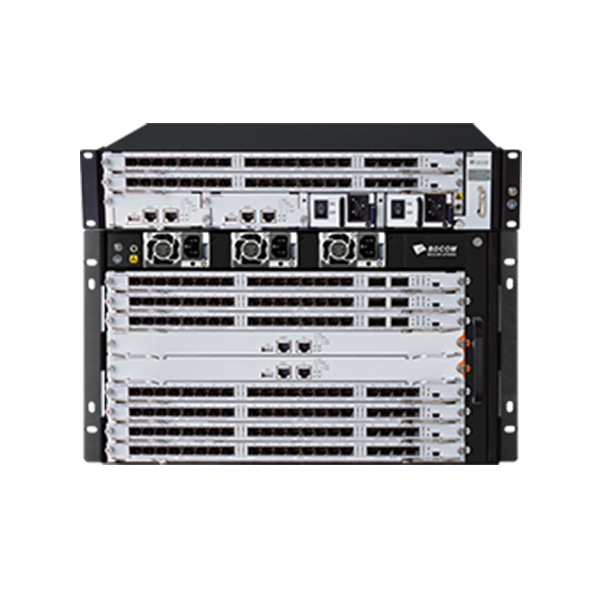

Distributed Multi-service Chassis OLT Platform GP8600 Series

0 ₫

OLT dòng GP8600 của BDCOM là nền tảng OLT hợp nhất đa dịch vụ, cung cấp khả năng truy cập GPON, XG-PON, XGS-PON, 10G và 100G. Thiết bị hỗ trợ nhiều chế độ xây dựng mạng khác nhau như FTTH/FTTO/FTTD và POL, cho phép truy cập tích hợp dịch vụ toàn diện cho cả người dùng gia đình và doanh nghiệp.

SKU: GP8600 Series Category:
Chia sẻ tới bạn bè và gia đình

Nền tảng OLT Khung gầm Đa dịch vụ Phân tán – Distributed Multi-service Chassis OLT Platform GP8600 Series
OLT dòng GP8600 của BDCOM là nền tảng OLT hợp nhất đa dịch vụ, cung cấp khả năng truy cập GPON, XG-PON, XGS-PON, 10G và 100G. Thiết bị hỗ trợ nhiều chế độ xây dựng mạng khác nhau như FTTH/FTTO/FTTD và POL, cho phép truy cập tích hợp dịch vụ toàn diện cho cả người dùng gia đình và doanh nghiệp.

Tính năng nổi bật

  • Hỗ trợ băng thông đường lên và đường xuống 100Gbps
  • Sử dụng băng thông hiệu quả và dịch vụ Ethernet
  • Kiến trúc phân tán
GP8600 Series

GP8600-C4, GP8600-C9

Overview

Typical Application

Technical Parameter

GP8600-C4GP8600-C9
System CapacitySplitter ratio up to 1:256Splitter ratio up to 1:256
Backplane bandwidth: 1.8TBackplane bandwidth: 7.6T
Port
GPONDownlink 2.5Gbps/uplink 1.25Gbps transmission rateDownlink 2.5Gbps/uplink 1.25Gbps transmission rate
Supports Class B+, Class C+, Class C++ PON modulesSupports Class B+, Class C+, Class C++ PON modules
Security: ONU authentication mechanismSecurity: ONU authentication mechanism
XG(S)-PONDownlink 10Gbps/Uplink 2.5Gbps transmission rate (asymmetric mode)Downlink 10Gbps/Uplink 2.5Gbps transmission rate (asymmetric mode)
Downlink 10Gbps/Uplink 10Gbps transmission rate (symmetric mode)Downlink 10Gbps/Uplink 10Gbps transmission rate (symmetric mode)
Supports N1/N2/E1 XGS-PON modulesSupports N1/N2/E1 XGS-PON modules
Security: ONU authentication mechanismSecurity: ONU authentication mechanism
Slots2 main control slots + 2 line card slots2 main control slots + 7 line card slots
Max. 10GE ports828
Max. 100GE ports414
Max. GPON ports32112
Max. XG(S)-PON ports32112
RJ45 console1 per MCU1 per MCU
Mini-USB console1 per line card1 per line card
Out-of-Band1 per MCU1 per MCU
DRAM
MCU4GB4GB
Line card2GB2GB
Flash
MCU8GB8GB
Line card4GB4GB
Backplane1.8Tbps7.6Tbps
MAC table128K128K
Buffer size9MB9MB
Jumbo frame
XG(S)-PON9KB9KB
GPON2KB2KB
Routing table
IPv416K16K
IPv68K8K
Active VLAN40944094
SVI12881288
Forwarding modeStore-forwardStore-forward
Power slots23
Power consumption≤300W≤850W
Power supplyAC: 100~240V, 50/60Hz DC: 36~72VAC: 100~240V, 50/60Hz DC: 36~72V

Features

Standards

  • ITU-T G.984/G.987/G.9807/G.988
  • PRC Community Industry Standard “Technical requirements for access network – Gigabitcapable passive optical network (GPON)”, and China Telecom’s GPON Technical Requirement CTC2.0.
  • IEEE 802.1D, Spanning Tree
  • IEEE 802.1Q, VLAN
  • IEEE 802.1w, RSTP
  • IEEE 802.3ad Physical Link Static/Dynamic Aggregation (LACP)
  • Ethernet-II

Reliability

  • Unidirectional Link Detection protocol to prevent Spanning Tree Loop
  • Hot-swappable PON transceivers
  • PON optical path protection
  • Type B/C single/dual homing protection
  • Supports rogue ONU detection

QoS

  • Backpressure flow control (half duplex)
  • IEEE 802.3x flow control (fullduplex)
  • IEEE 802.1p, CoS
  • WRR, SP, and FIFO queue scheduling algorithms
  • Uplink and downlink rate limiting functionality for each ONU
  • Supports DBA and SLA functions

Security

  • Limit the maximum number of users per port
  • Port isolation
  • Broadcast storm control
  • ACL (Access Control List) based on data flow
  • Data transmission encryption over PON ports

VLAN

  • 1Q VLAN, 4K active VLANs
  • QinQ and flex-QinQ

Multicast

  • IGMP v1/2/3
  • IGMP Snooping
  • MLD Snooping

Management

  • Multiple management methods including Web GUI(HTTP/HTTPS), CLI (Command Line Interface), SNMP v1/v2c/v3, Telnet, SSH
  • Software upgrades via TFTP/FTP
  • SPAN and RSPAN
  • Syslog

AAA

  • Local and remote AAA service
  • 1X
  • Radius and TACACS+

Power

  • Input voltage: AC100~240V, DC 36~72V
  • Multiple power inputs, AC and DC mix hot-swappable power supply

Environment

  • Operating environment: 0°C~45°C; 10%~85% non-condensing
  • Storage environment: -40°C~80°C; 5%~95% non-condensing

Dimensions (LxWxH)mm

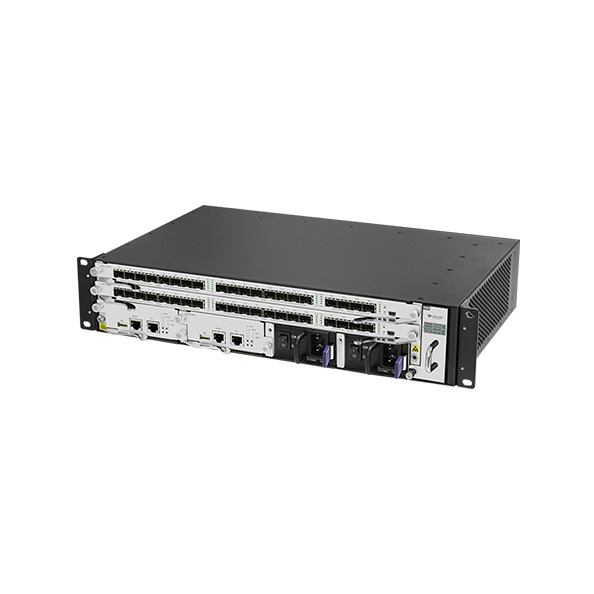

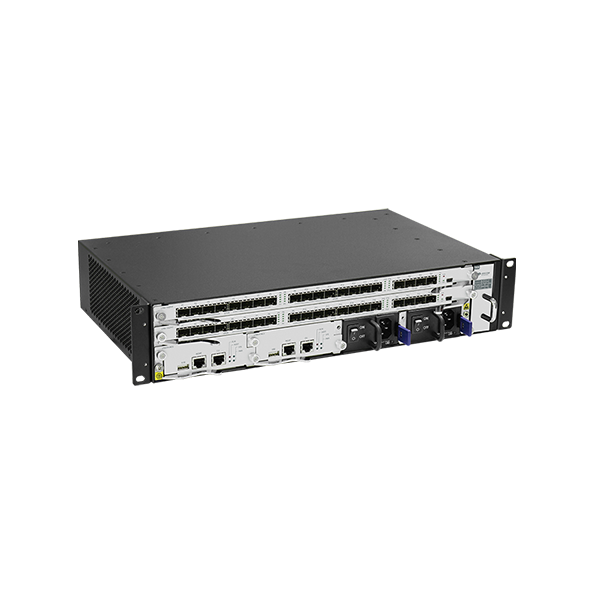

GP8600-C4:

  • Without Rack Ears: 442x280x88.1mm
  • Rack Ears: 482.6x280x88.1mm

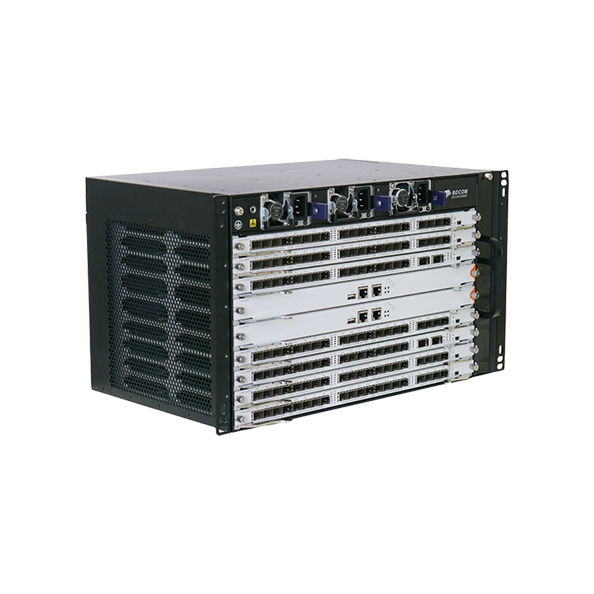

GP8600-C9:

  • Without Rack Ears: 442×280×263.9mm
  • Rack Ears: 482.6×280×263.9mm

Ordering Information

BDCOM GP8600 Series
GP8600-C4GP8600-C4 OLT Chassis (one fan slot with fan module, 2 power slots without power supply, 2 main control slots, 2 line card slots)
GP8600-C9GP8600-C9 chassis (one fan slot with fan module, 3 power slots without power
supply, 2 main control slots, 7 line card slots)
LP8604-MCUMain Control Unit, 1 CLI port, 1 USB, 1 MGMT port, only available for GP8600-C4
LP8609-MSUMain Control Unit, 1 CLI port, 1 USB, 1 MGMT port, only available for GP8600-C9
LP86-16GP4TGPON Line Card, supports 16 GPON ports (SFP ports), 4 10GE SFP+ ports (excluding optical modules)
LP86-16XGS2CXG(S)-PON Line Card, supports 16 XG(S)-PON ports (compatible with GPON; can be
converted to GPON ports through GPON modules), 2 100G QSFP28 port (optical modules
not included)
PWR-450-ACAC Power Supply (input voltage AC 100~240V, maximum power 450W), only
available for GP8600-C4
PWR-450-DCDC Power Supply (input voltage DC 36~72V, maximum power 450W), only
available for GP8600-C4
PWR-1300-ACAC Power Supply (input voltage AC 100~240V, maximum power 1300W), only
available for GP8600-C9
PWR-1300-DCDC Power Supply (input voltage DC 36~72V, maximum power 1300W), only
available for GP8600-C9
OLT-GSFP-B+GPON Module (Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength
1490nm, RX wavelength 1310nm, SC/UPC interface)
OLT-GSFP-C+GPON Module (Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength
1490nm, RX wavelength 1310nm, SC/UPC interface)
OLT-GSFP-C++GPON Module (Class C++ standard, downlink 2.5G/uplink 1.25G, TX wavelength
1490nm, RX wavelength 1310nm, SC/UPC interface)
OLT-XGS-N1XGS-PON Module, N1 standard, downlink 10G, uplink 10G/2.5G, TX wavelength
1577nm, RX wavelength 1270nm, SC/UPC interface)
OLT-XGS-N2XGS-PON Module, N2 standard, downlink 10G, uplink 10G/2.5G, TX wavelength
1577nm, RX wavelength 1270nm, SC/UPC interface)
